Contents for Tables:-
| S.R.No. | Contents | Page No. |
| 1 | IntroductionDefinition to Plasmid Vectors Importance in Molecular BiologyHistorical Perspective | 6-16 |
| 2 | Structure of Plasmids Components of PlasmidsMulti Cloning SiteTypes of Plasmids | 17-20 |
| 3 | Types of Plasmid Vectors | 21-23 |
| 4 | Plasmid Vector Constructions | 24-28 |
| 5 | Techniques for Plasmid Amplification | 29-38 |
| 6 | Future Perspectives on Plasmid Vectors | 39-41 |
| 7 | Conclusion | 42-44 |
1-Introduction
Plasmid vectors are crucial tools in biotechnology and genetic engineering. They are small, circular pieces of DNA that often naturally occur in bacteria. They can replicate independently from the chromosomal DNA of bacteria, making them ideal for cloning and expressing genes of interest.
In this document, we will explore the detailed structure of plasmids, including essential components like the origin of replication, selectable markers, a multiple cloning site, and promoter regions. Various types of plasmid vectors, such as cloning vectors, expression vectors, shuttle vectors, and viral vectors will be covered, as well as the methods for constructing these vectors.
We will describe techniques for amplifying plasmids, methods of bacterial transformation, and strategies for the selection and screening of successfully transformed cells. The multiple applications of plasmid vectors in gene cloning, protein expression, gene therapy, and vaccine development will be highlighted.
Moreover, we will discuss the latest advances in plasmid vector technology, including their role in CRISPR and other cutting-edge molecular techniques. Ethical considerations and regulatory frameworks surrounding the use of plasmid vectors will also be addressed.
This overview will not only provide insights into the fundamental concepts of plasmid vectors but also pave the way for understanding their implications in modern biological research and applications.
If you would like me to elaborate further on specific sections from the Table of Contents or provide detailed content on particular topics, please let me know!
Definition of Plasmid Vectors
Plasmid vectors are small, circular, double-stranded DNA molecules that can replicate independently of the bacterial chromosomal DNA. They are primarily derived from plasmids, which are naturally occurring DNA entities found in many bacteria and some archaea. Plasmid vectors have been engineered to serve as tools for genetic manipulation and biotechnology.
Key Features of Plasmid Vectors:
1. Self-Replication: Plasmid vectors contain an origin of replication (ori), which allows them to replicate independently within a host cell, enabling the amplification of the DNA they carry.
2.Selectable Markers: These vectors usually possess selectable markers, such as antibiotic resistance genes, that allow researchers to identify and select for cells that contain the plasmid. When a host bacterium is transformed with a plasmid vector, only those that have taken up the plasmid will survive in the presence of the corresponding antibiotic.
3.Multiple Cloning Site (MCS): Plasmid vectors contain a region known as the multiple cloning site, where restriction enzyme cut sites are located. This allows researchers to insert foreign DNA fragments into the plasmid at specific locations, facilitating the cloning of genes of interest.
4. Promoter Sequences: Many plasmid vectors include promoter regions that drive the transcription of the inserted gene, enabling the expression of proteins in the host organism.
5. Various Sizes and Types: Plasmid vectors can vary significantly in size and are tailored for specific purposes, such as cloning (inserting DNA), expression (producing proteins), or other applications like gene therapy.
Applications of Plasmid Vectors
Plasmid vectors are invaluable in molecular biology for various applications, including:
Gene Cloning: Inserting a specific gene into a plasmid for subsequent replication and study.
Protein Expression: Using plasmids to produce large quantities of a desired protein, which can be used for research or therapeutic applications.
Gene Therapy: Delivering therapeutic genes to patients’ cells to treat genetic disorders.
Vaccine Development: Engineering plasmid vectors to produce antigens for vaccines, enabling immune responses against specific pathogens.
In summary, plasmid vectors are essential tools in genetic engineering, allowing scientists to manipulate genes easily, express proteins, and produce genetically modified organisms for research, industrial applications, and medical therapies.
Importance of Plasmid Vectors in Molecular Biology
Plasmid vectors play a crucial role in the field of molecular biology and biotechnology. Their versatility and ability to facilitate various genetic manipulations have made them indispensable for researchers. Here are several key aspects of their importance:
1. Gene Cloning
Plasmid vectors are foundational tools for gene cloning, a process that allows researchers to isolate and replicate specific segments of DNA. This is crucial for studying gene function, characterizing genetic material, and producing large quantities of DNA. By inserting a gene of interest into a plasmid vector, scientists can easily propagate it in host cells, typically bacteria.
2. Protein Expression
Plasmid vectors designed for expression can be used to produce proteins in host cells. By incorporating promoter sequences into the vector, researchers can control the transcription and translation of the inserted gene, leading to the production of proteins in significant amounts. This is particularly important for:
Biopharmaceuticals: Many therapeutic proteins, enzymes, and antibodies are produced using recombinant plasmid technology.
Structural Studies: Proteins expressed in sufficient quantities can be purified and used for structural analysis, functional assays, or drug development.
3. Genetic Engineering
Plasmid vectors enable precise genetic modification of organisms through techniques such as CRISPR-Cas9 and other gene-editing technologies. They serve as vehicles for delivering engineered nucleases or donor DNA into target cells, allowing for the modification of specific genes or pathways.
4. Gene Therapy
In gene therapy, plasmid vectors are often used to deliver therapeutic genes into patients’ cells to correct genetic defects or treat diseases. While viral vectors are commonly used, non-viral plasmid vectors provide a safer alternative with reduced risk of immune responses.
5. Development of Vaccines
Plasmid vectors are utilized in the development of DNA vaccines. These vaccines contain plasmid DNA encoding antigens from pathogens, which, when introduced into the host, stimulate an immune response. This technology has shown promise in providing protection against various infectious diseases.
6. Creation of Genomic Libraries
Plasmid vectors facilitate the construction of genomic libraries, which are collections of DNA fragments from an organism’s genome cloned into plasmids. These libraries are invaluable for the study of gene function, identification of genetic variants, and genomic mapping.
7. Synthetic Biology and Biotechnology
Plasmid vectors are essential in synthetic biology, where they are used to assemble novel genetic constructs and pathways. This capability allows for the engineering of microorganisms to produce biofuels, pharmaceuticals, or other valuable compounds.
8. Functional Genomics
Plasmid vectors enable functional genomics studies, where researchers investigate gene functions by overexpressing or silencing genes of interest in various organisms. This helps elucidate the roles of specific genes in cellular processes and disease.
9. Education and Training
Plasmid vectors are commonly used in educational settings to teach molecular biology techniques. They provide a hands-on approach to understanding DNA manipulation, cloning techniques, and genetic transformation.
10. Customization and Versatility
Plasmid vectors can be easily customized to meet specific research needs. This adaptability allows for the rapid development of new vectors with tailored features, such as promoter strength, selectable markers, or antibiotic resistance.
Historical Perspective of Plasmid Vectors
The history of plasmid vectors is closely intertwined with the development of molecular genetics and biotechnology. Understanding the evolution of plasmid vectors provides insight into how these essential tools have transformed biological research and applications. Below is a chronological overview highlighting significant milestones in the history of plasmid vectors and their roles in molecular biology.
1. Discovery of Plasmids (1960s)
Early Studies: The concept of plasmids began to take shape in the early 1960s when researchers identified extrachromosomal DNA in bacteria that could replicate independently of the bacterial chromosome.
Joshua Lederberg and Edward Tatum (1946): They first discovered that genetic material could be transferred between bacteria via conjugation, although the term “plasmid” was not yet used.
2. Term “Plasmid” Established (1967)
Origin of the Term: The term “plasmid” was coined by W. A. Jacob and E. L. W. Monod in 1967 to describe these self-replicating DNA entities in bacteria that were separate from chromosomal DNA.
3. Isolation of Plasmids (1970s)
Characterization of Plasmids: During the early 1970s, advances in molecular biology techniques allowed for the isolation and characterization of plasmids. Researchers began to study plasmid properties such as their size, replication mechanisms, and role in antibiotic resistance.
4. Development of Recombinant DNA Technology (1972)
Paul Berg and the First Recombinant DNA: In 1972, Paul Berg and his colleagues successfully created the first recombinant DNA molecule by inserting the SV40 virus DNA into a plasmid vector. This groundbreaking work laid the foundation for genetic engineering and the use of plasmid vectors as cloning tools.
5. The First Cloning Vectors (Mid-1970s)
pBR322: In 1977, the plasmid pBR322 was developed by Bolivar and Rodriguez, which became one of the first widely used cloning vectors. It contained genes for ampicillin and tetracycline resistance, allowing for easy selection of transformed bacterial cells.
6. Introduction of the Multiple Cloning Site (MCS) (1980s)
Enhancements in Cloning: The introduction of multiple cloning sites in plasmid vectors allowed for the easier insertion of DNA fragments at specific locations. This advancement significantly streamlined the cloning process.
7. Commercialization and Expansion of Applications (1980s)
DNA Sequencing and Analysis: The 1980s saw considerable growth in the use of plasmid vectors for DNA sequencing and genetic analysis. The completion of the first complete genome sequences further advanced these applications.
Biotechnology Industry: The biotechnology industry began to flourish, with plasmid vectors playing a vital role in producing recombinant proteins, hormones, and enzymes for therapeutic and industrial use.
8. Development of Expression Vectors (1980s-1990s)
Protein Production: As molecular biology techniques advanced, expression vectors were developed to allow for the controlled expression of proteins in host cells. These vectors often included strong promoters that enhanced protein yield.

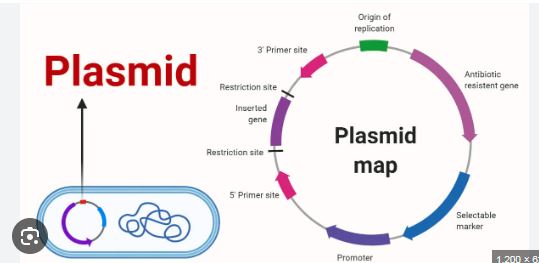

Structure of Plasmids
Plasmids are extrachromosomal, circular double-stranded DNA molecules found primarily in bacteria and archaea. They play a significant role in the genetics of these organisms and are essential tools in molecular biology and biotechnology. Understanding the structure of plasmids is crucial for their effective use in applications such as gene cloning, expression, and genetic engineering. This comprehensive discussion will cover the structural components of plasmids, their variations, and their functional implications.
General Characteristics of Plasmids
Plasmids exhibit several key features that differentiate them from chromosomal DNA:
Circular Configuration: Most plasmids are circular, which contributes to their stability and allows for efficient replication and segregation during cell division.
Size Variation: Plasmids can vary significantly in size, ranging from a few thousand base pairs (bp) to over 100 kilobases (kb). The size of a plasmid often correlates with its functional capabilities.
Self-Replicating: Plasmids possess an origin of replication (ori) that allows them to replicate independently of the bacterial chromosome, enabling their transmission to daughter cells during cell division.
2. Structural Components of Plasmids
Plasmid structure consists of several essential components, each serving a specific function:
2.1. Origin of Replication (ori)
The origin of replication is a crucial element that determines how a plasmid replicates within a host cell. This region contains specific sequences recognized by the host’s replication machinery, allowing the plasmid to initiate replication.
Types of Origins of Replication
Low-Copy Number Plasmids: These plasmids replicate only a few times per cell division. They often require a more complex regulation of replication to maintain a stable presence in the host. An example is the F-plasmid in *Escherichia coli.
High-Copy Number Plasmids: These plasmids can replicate many times per cell division, often exceeding 100 copies in a bacterial cell. Common examples include pUC and pBR322 plasmids. High-copy plasmids are widely used in molecular biology for gene cloning because they produce a larger yield of the plasmid DNA.
2.2. Selectable Markers
Selectable markers are genes included in the plasmid that confer a phenotype to the host, which allows for the identification and selection of cells containing the plasmid. These markers usually provide resistance to specific antibiotics or toxins.
Common Selectable Markers
Antibiotic Resistance Genes: These genes allow transformed bacteria to survive in environments containing antibiotics. For example, the *bla gene confers resistance to ampicillin, while the tet gene confers resistance to tetracycline.
Auxotrophic Markers: These markers enable the selection of mutant strains that require specific nutrients for growth. For instance, a plasmid might carry a *thr gene for threonine biosynthesis, allowing selection for cells that can grow in threonine-deficient media.
2.3. Multiple Cloning Site (MCS)
The multiple cloning site (MCS) is a short region of the plasmid that contains several unique restriction enzyme sites. This feature is crucial for inserting foreign DNA into the plasmid.
Function of the MCS
Facilitating Cloning: The MCS allows researchers to easily cut the plasmid at specific locations using restriction enzymes, facilitating the insertion of foreign DNA fragments. The presence of multiple unique sites increases flexibility and options for gene insertion.
Compatibility: The MCS is designed to accommodate various restriction enzymes, which allows for compatibility with diverse DNA fragments that researchers may wish to clone.
